Smart-UPS On-Line

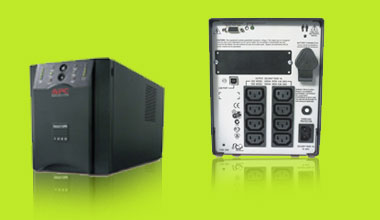

APC Smart-UPS RC 1000VA 230V Harsh Environment

sua-img

APC Smart-UPS, 670 Watts / 1000 VA,Input 230V /

Output 230V, Interface Port DB-9 RS-232,

SmartSlot, USB

Includes: CD with software, Smart UPS signalling RS-232 cable, USB cable, User Manual

Standard Lead Time: Usually in Stock
Technical Spesification
Output
Output Power Capacity
670 Watts / 1000 VA
Max Configurable Power
670 Watts / 1000 VA
Output Voltage Note
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz

nominal
Waveform Type
Less than 3%
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz

nominal
Waveform Type
3 : 1
Waveform Type
Sine wave
Output Connections
(8) IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with

suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
RBC6
RBC™ Quantity
1
Runtime Graph
sua 10001 run time graph
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
DB-9 RS-232,SmartSlot,USB
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line :

: On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable

delays
Emergency Power Off (EPO)
Optional
Surge Protection and Filtering
Surge energy rating
320 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-
through : zero clamping response time : meets UL 1449
Physical
Maximum Height
216.00 mm
Maximum Width
170.00 mm
Maximum Depth
439.00 mm
Net Weight
18.86 KG
Shipping Weight
20.91 KG
Shipping Height
381.00 mm
Shipping Width
330.00 mm
Shipping Width
584.00 mm
Color
Black
Units per Pallet
24.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
41.00 dBA
Online Thermal Dissipation
100.00 BTU/hr
Conformance
Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Standard Warranty
2 years repair or replace
Environmental Compliance
LED status display with load and battery bar-graphs and On

Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
RoHS 7b Exemption,China RoHS
Emergency Power Off (EPO)
Optional
